Product number:
PROD5263

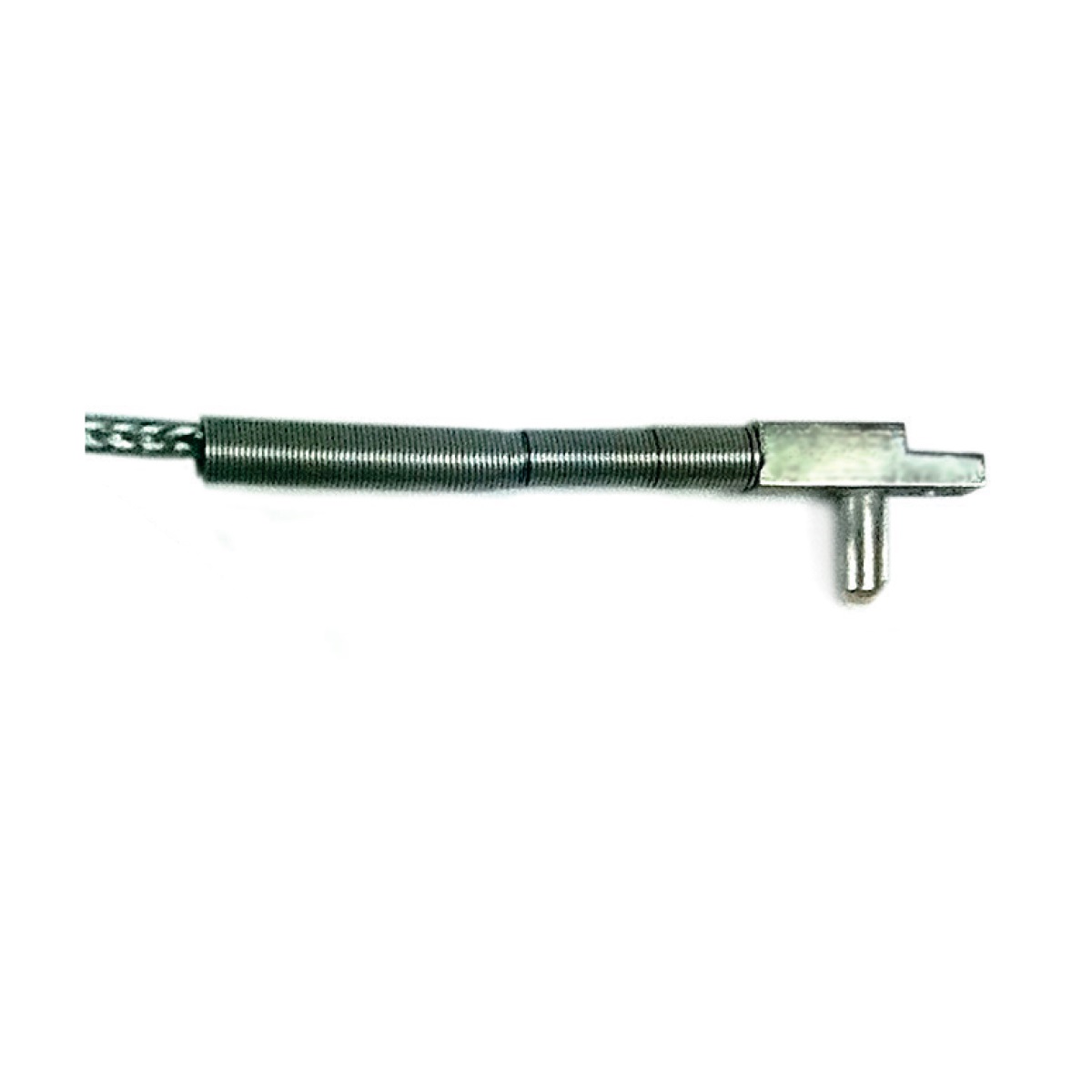

Thermocouple - Pin Type
- Mouldpro
Files
Images
Specification
Tip: 316L Stainless Steel.
Hot Junction Type: Insulated or grounded.
Probe: Type J thermocouple, DIN IEC 584, Class 1.
Mounting: Fixed with a 4 mm screw.
Connection: Stainless steel tab, 20 mm x 6 mm x 6 mm.
Connection Cable: Glass fiber/glass fiber/stainless steel braid, 2 x 0.22 mm².
Maximum Operating Temperature: +400°C.
Hot Junction Type: Insulated or grounded.
Probe: Type J thermocouple, DIN IEC 584, Class 1.
Mounting: Fixed with a 4 mm screw.
Connection: Stainless steel tab, 20 mm x 6 mm x 6 mm.
Connection Cable: Glass fiber/glass fiber/stainless steel braid, 2 x 0.22 mm².
Maximum Operating Temperature: +400°C.
