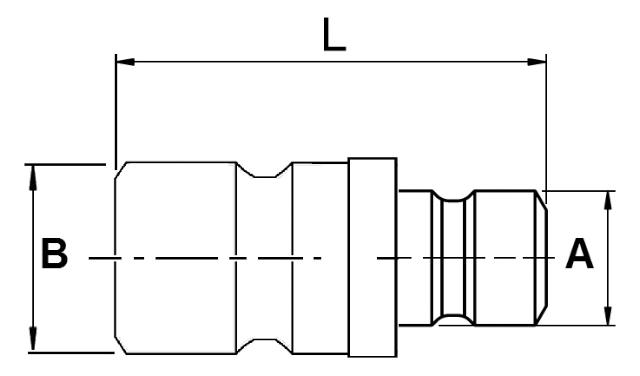

Double Nipple

Coupling series specially developed for connectin coolnat lines on injection moulds.

Fully interchangeable with other brands with the same plug profiles.

All dimensions and tolerances according to original specs.

Material

Coupling

Back Body       Brass

Valve Body      Brass

Sleeve               Brass (without Valve)

Sleeve Brass, Nickel Plated (with Valve)

Valve Brass

Locking Balls AISI 420

Spring AISI 301
Seal FKM

Plug
Plug Profile Brass
Back Body Brass
Valve Brass
Spring AISI 301
Seal FKM


Working Pressure

15 bar, maximum static working pressure with safety factor of 4 to 1.

Working temerature

Water -15°C up to +140°C

Oil -15°C up to +180°C
