Product number:
1604

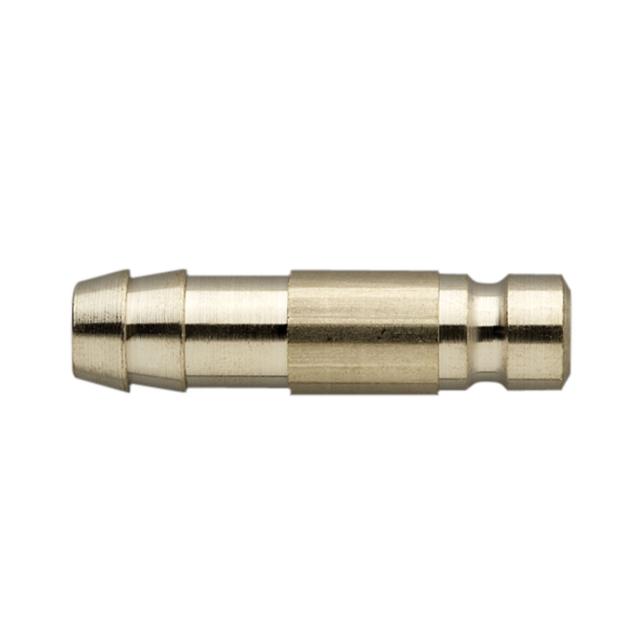

Connector Nipple, Hose Tail
- Mouldpro
Files
| Name | Download | File type |
|---|---|---|
| Datasheet-COUPLERS-International-Series.pdf | 543 KB |
Images
Specification
Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs. 15 bar, maximum static working pressure with safety factor of 4 to 1
WorkingTemperature
Standard Couplers: Water -15°C up to +140°C, Oil -15°C up to +180°C
HT-Series: Water -15°C up to +180°C, Oil -15°C up to +180°C
