Product number:
3399

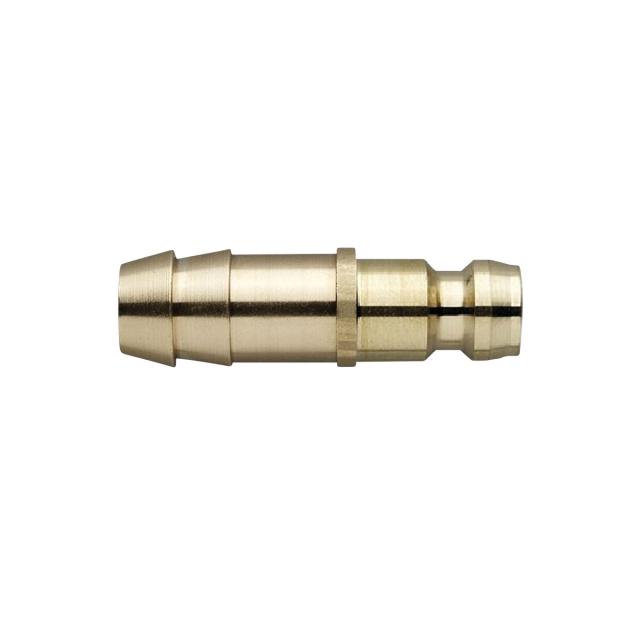

Connector, Straight Hose Tail
- Mouldpro
Files
Files
| Name | Download | File type |
|---|---|---|
| Datasheet-COUPLERS-European-Series.pdf | 406 KB |
Specifications
Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs. 15 bar, maximum static working pressure with safety factor of 4 to 1
Working Temperature
Standard Couplers: Water -15°C up to +140°C, Oil -15°C up to +180°C
HT-Series: Water -15°C up to +180°C, Oil -15°C up to +180°C
