Product number:

2026

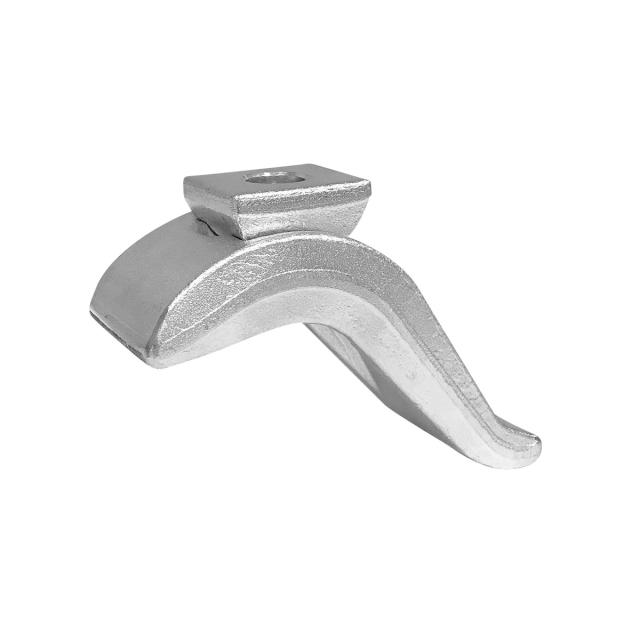

S-clamp

Mouldpro
Files
Images
Specification

Heavy-duty design and specially suitable for injection moulding machines this clamp can be used with T-slots and threaded platens. Stepless height adjustable clamp design for quick and simple height adjustment without additional supports.


Forged Steel, Hardened, Zinc Plated


Suitable for T-slots and threaded platens

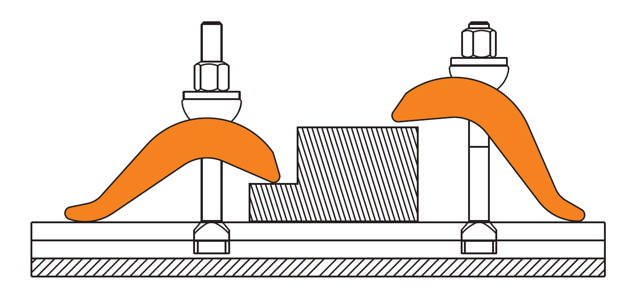

Variable and quick adjustment to the mould clamping height
Particularly suitable for use on injection moulding machines
No additional elements required to achieve the required clamping height
Variable to any clamping height
Low space requirement on machine platen
Note : Use with DIN6340 washer. Clamp Forces Specified using DIN787 Forged threaded stud (not supplied)
